ST15-M2(IP)

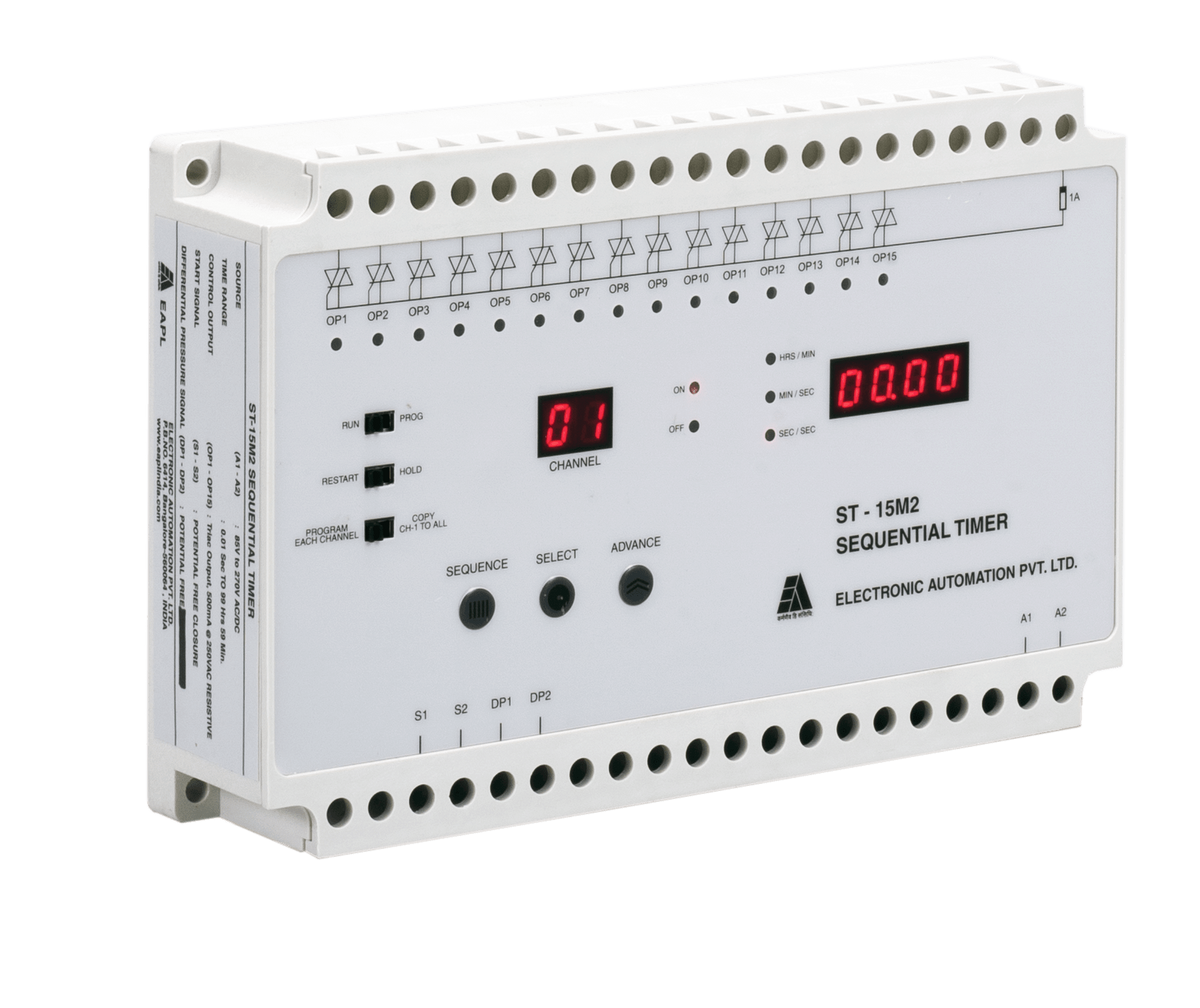

The EAPL ST15-M2 (IP) is a 15-channel sequential timer built for large-scale automation and process systems operating in demanding or outdoor environments. Housed in an IP-rated enclosure, it offers complete protection against dust and moisture while delivering precise and reliable sequential control. Each of the 15 channels can be programmed with independent ON and OFF durations, allowing safe, non-overlapping operation of multiple loads such as motors, pumps, fans, or compressors.

Key Features:

• Fifteen independent channels with individually programmable ON and OFF time settings.

• Adjustable time range from 0.1 seconds to 99 hours 59 minutes per channel.

• Dual operation modes: Single-Cycle Mode (runs through once) or Cyclic Mode (continuously repeats).

• Selectable HOLD or RESTART function after power restoration.

• Start input (S1–S2) for external triggering and Pause input (I1–I2) to halt timing mid-sequence.

• Cycle-complete output for signaling process completion or interlocking with other equipment.

• Wide supply voltage range: 85 – 270 V AC/DC.

• IP-rated enclosure for reliable protection against dust, humidity, and outdoor exposure.

• Heavy-duty, panel- or wall-mountable design for continuous industrial operation.

Applications:

• Sequential control of multiple motors, pumps, or blowers in outdoor or harsh industrial environments.

• Dust-collector, filtration, or ventilation systems requiring staggered activation.

• Water-treatment and irrigation control panels operating under high-humidity conditions.

• Large-scale automation processes needing reliable, time-based sequencing without PLCs.
