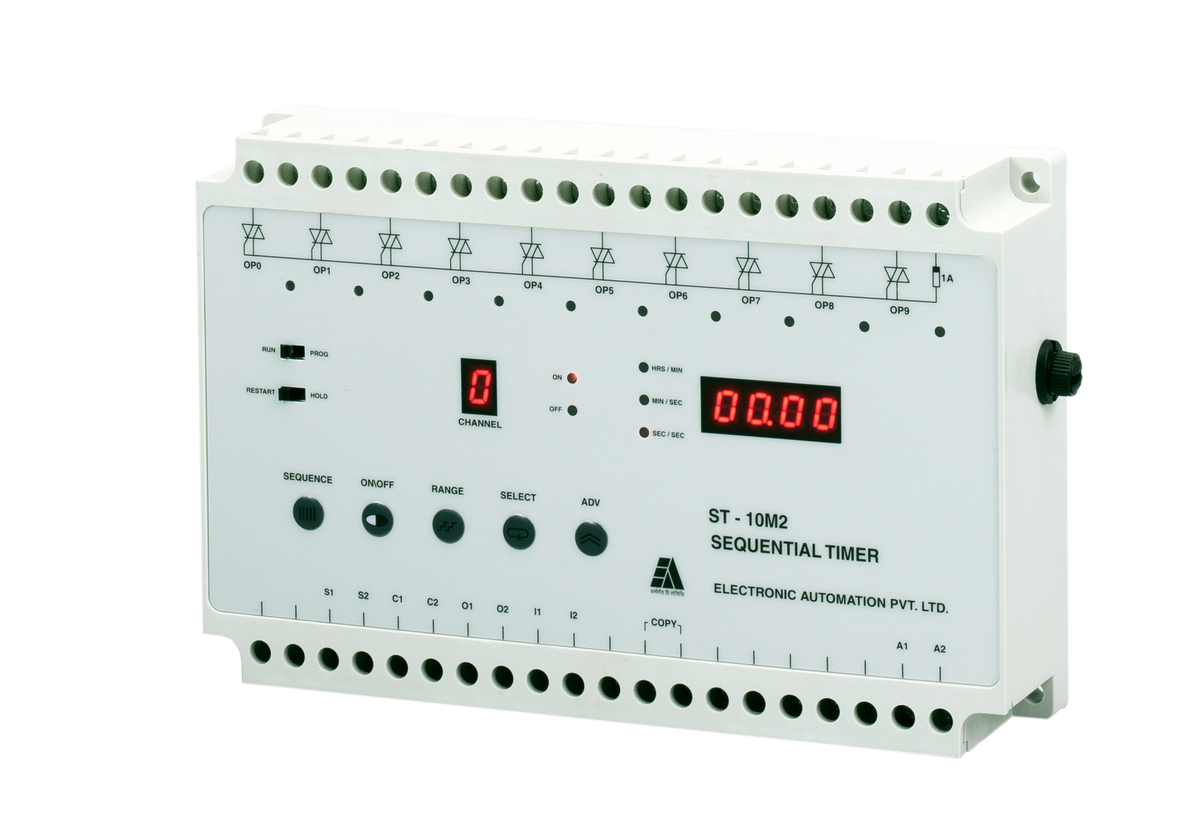

ST10-M2(IP)

The EAPL ST10-M2 (IP) is a rugged 10-channel sequential timer designed for precise load sequencing in harsh or outdoor environments. Enclosed in an IP-rated cabinet for dust and moisture protection, it allows each channel to operate with independent ON and OFF times, ensuring safe, non-overlapping activation of multiple motors, pumps, or other equipment. Built for reliability, flexibility, and long service life, it’s ideal for industrial automation and process-control systems.

Key Features:

• Ten independent output channels with programmable ON and OFF durations.

• Adjustable timing range from 0.1 seconds to 99 hours 59 minutes per channel.

• Dual operation modes: Single-Cycle (runs once through all channels) or Cyclic (auto-restarts from channel 1).

• Selectable HOLD or RESTART behavior after power restoration.

• Start input (S1–S2) for external trigger and Pause input (I1–I2) to halt or resume timing mid-sequence.

• Cycle-complete output for feedback or interlocking with external systems.

• Wide operating voltage: 85 – 270 V AC/DC.

• IP-rated dust- and moisture-resistant housing for outdoor or industrial installations.

• Heavy-duty, panel- or wall-mountable construction suitable for continuous operation.

Applications:

• Sequential starting of multiple motors, compressors, or pumps to reduce inrush current and prevent overloads.

• Outdoor HVAC, blower, and dust-extraction systems requiring staggered activation.

• Water-treatment and irrigation systems where timed sequencing improves efficiency.

• Industrial automation panels in harsh environments that require precise timing without a PLC.
