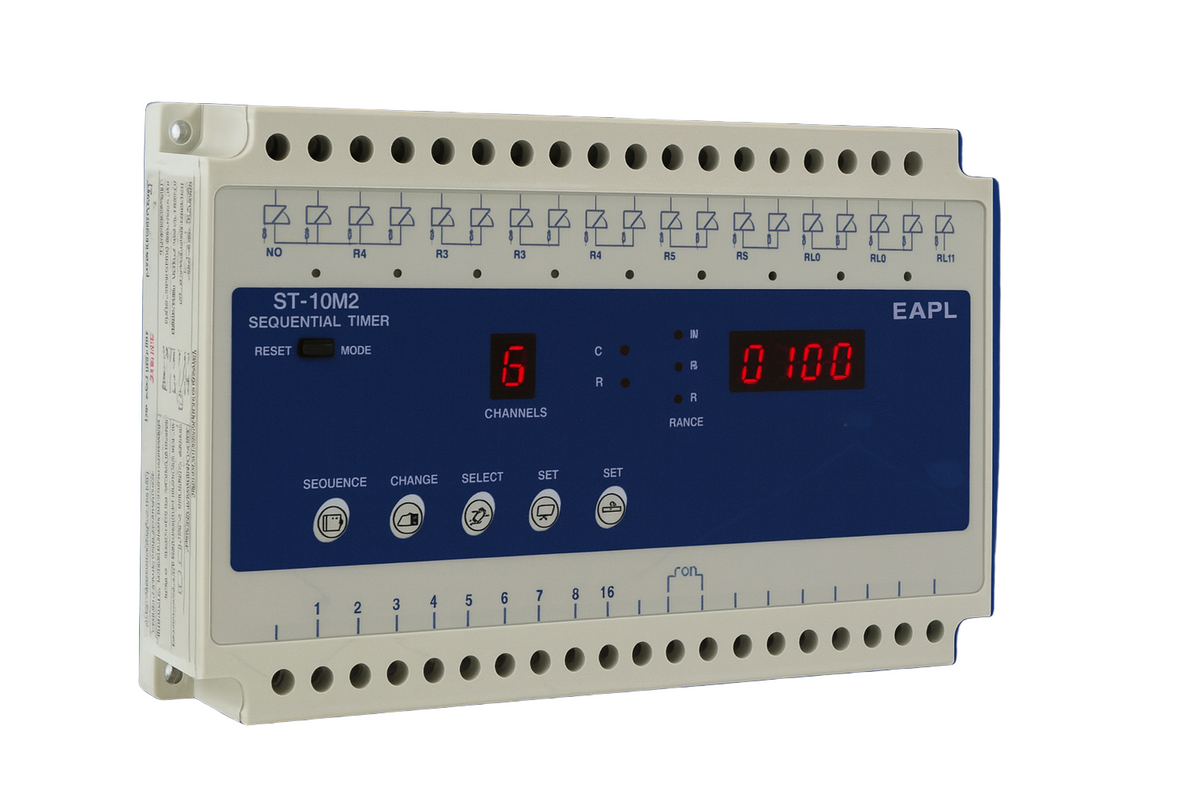

ST10-M2

The EAPL ST10-M2 is a robust ten-channel sequential timer engineered for precise, step-by-step control of multiple electrical loads. Each channel offers independent ON and OFF time settings, enabling smooth, automatic sequencing without overlap. Designed for industrial automation, HVAC, and process control applications, the ST10-M2 ensures reliable operation where multiple devices must be activated or deactivated in a specific order.

Key Features:

• Ten independent channels with separate programmable ON and OFF durations.

• Adjustable timing range from 0.1 seconds to 99 hours 59 minutes per channel.

• Dual operating modes: Single-Cycle Mode (runs one full sequence) or Cyclic Mode (repeats continuously).

• Selectable HOLD or RESTART function on power restoration.

• Start input (S1–S2) for external triggering and Pause input (I1–I2) for halting timing mid-sequence.

• Cycle Complete output for signaling sequence completion or triggering external logic.

• Wide operating voltage range: 85 – 270 V AC/DC.

• Rugged, panel-mountable design built for continuous industrial use.

Applications:

• Sequential start/stop control of multiple motors, pumps, or compressors to reduce inrush current.

• Air-handling units, dust-collection, and ventilation systems requiring staged fan activation.

• Conveyor systems and process machinery that require precise timed sequencing.

• Control panels and MCCs needing reliable, maintenance-free timing without a PLC.
