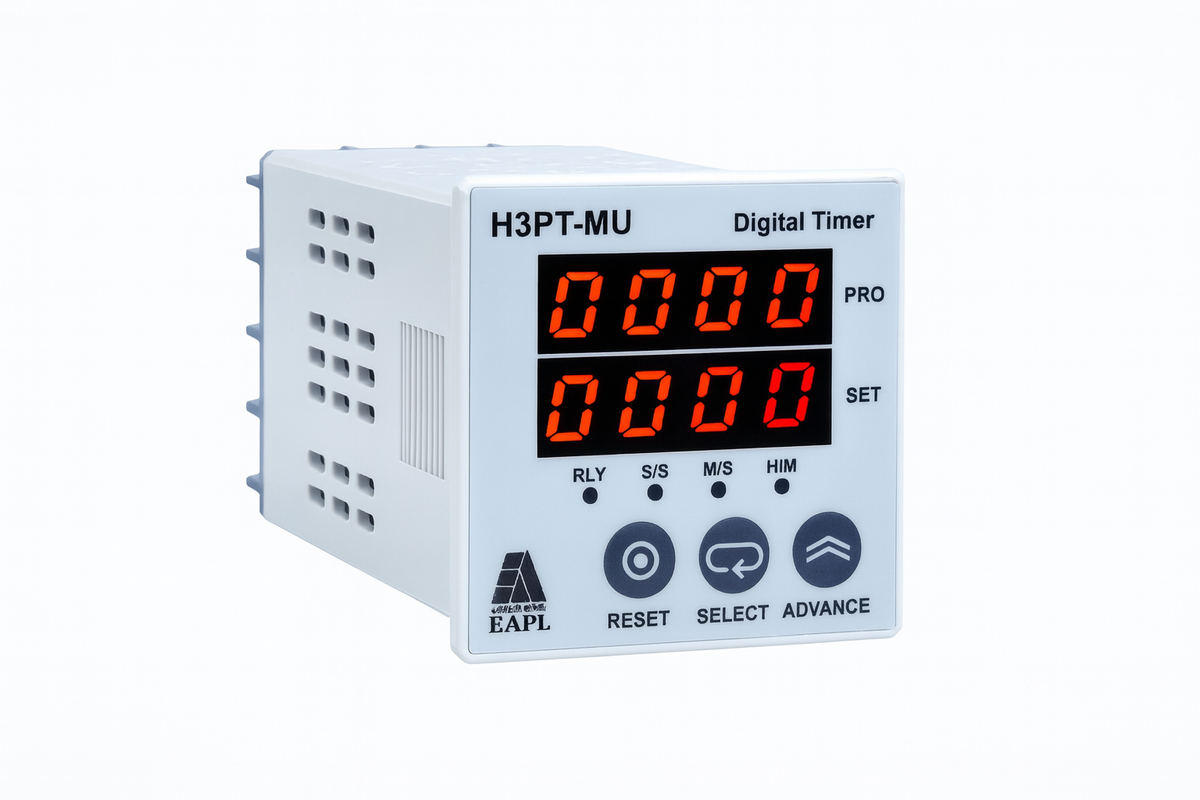

H3PT-MU

The H3PT-MU is a versatile, panel-mounted digital timer from EAPL designed for industrial control applications. With its programmable timing modes (On-Delay, Interval, Cyclic), dual-display interface and compact 48 × 48 mm panel size, it delivers reliable time-based control of processes and loads in automation, switchgear and manufacturing systems.

Key Features:

• Offers three key functional modes: On-Delay, Interval and Cyclic, allowing flexible timing logic to suit many applications.

• Time range from 0.1 seconds to 99 hours 59 minutes, giving ample span for short pulses to long-duration cycles.

• Configurable start-signal types: No-Start, Pulse, Continuous Start, allowing the timer to be triggered in different ways.

• Two internal relay contacts (1 C/O Instant + 1 C/O Delayed or 2 C/O Delayed depending on model) for switching control.

• Panel-mount dimensions approx 48 × 48 × 95.5 mm (W × H × D) make it suitable for compact installations.

• Wide supply voltage capability: versions available for 85-270 V AC/DC, 24 V DC, 12 V DC etc — enabling flexibility in control systems.

• Programming lock feature to prevent inadvertent changes, and support for “Hold” or “Restart” modes after power failure.

Applications:

• Timing control for industrial automation — e.g., controlling motors, pumps, conveyors, or any loads requiring timed intervals.

• Panel-mounted control cabinets and switchgear where a compact timer with multi-mode functionality is required.

• Processes requiring repeated cyclic control (ON-time / OFF-time), interval control (delay then run) or simple on-delay behaviour.

• Retrofitting into existing panels given standard panel cut-out size and flexible voltage options.
