Product Description

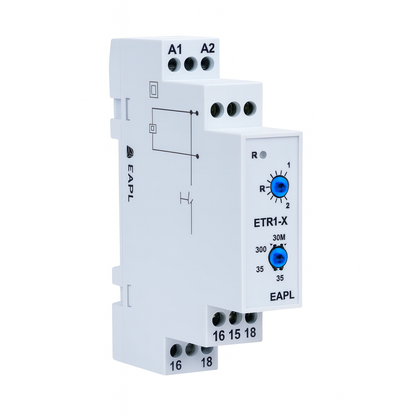

The ETRE‑X is a multirange interval timer in EAPL’s compact 17.5 mm ETR series. Designed for precision and flexibility, it offers reliable timing control across various industrial applications.
Key Specifications
| Feature | Specification |
|---|---|
| Function | Interval Timer – switches ON for a preset time, then OFF. |
| Supply Voltage | 24 VAC to 240 VAC & 24 VDC to 220 VDC (“X-Version”). |
| Power Consumption | AC: ~5 VA; DC: ~3 W. |
| Control Output | 1 C/O (Change-over) relay, rated for 5 A at 250 VAC / 28 VDC resistive load. |
| Time Range | 0.3 seconds to 30 minutes, selectable via ranges: 3 S, 30 S, 3 M, 30 M. |
| Precision & Accuracy | Setting accuracy ±10% full scale ±100 ms; Repeat accuracy ±1% ±100 ms; Recovery time ≥100 ms. |
| Environmental Ratings | Operating: –10 °C to +55 °C; Storage: –25 °C to +80 °C; Humidity: up to 95% RH @ 40 °C. |
| Service Life | Mechanical: ≥ 10 million operations (no load); Electrical: ≥ 1800 ops/hour (full load). |
| Insulation & Dielectric | Insulation resistance >100 MΩ at 500 V DC; Dielectric withstand: 1.5 kV AC (input/enclosure, relay/enclosure, input/relay) for 1 min. |
| Connections & Dimensions | Screw-type terminals with self-lifting clamps; Size: 17.5 × 89 × 62 mm (W × H × D). |
Typical Applications
ETRE‑X is well-suited for deployment in:
-
Automation control panels
-
HT (High-Tension) / LT (Low-Tension) electrical panels
-
Motor Control Centers (MCC)
-
Control & Relay (C & R) panels
-
Relay Timing Control Centers (RTCC)
-
Transformer panels and other control infrastructure
Summary Overview
The ETRE-X stands out as a sturdy, compact interval timer delivering precise timing over a versatile range (0.3 s to 30 min), powered via a widely supported “X-Version” supply (24–240 VAC / 24–220 VDC). With a durable relay output, LED timing indication, rugged operating specs, and DIN-rail friendly dimensions, it's ideal for varied industrial panel applications.
-
