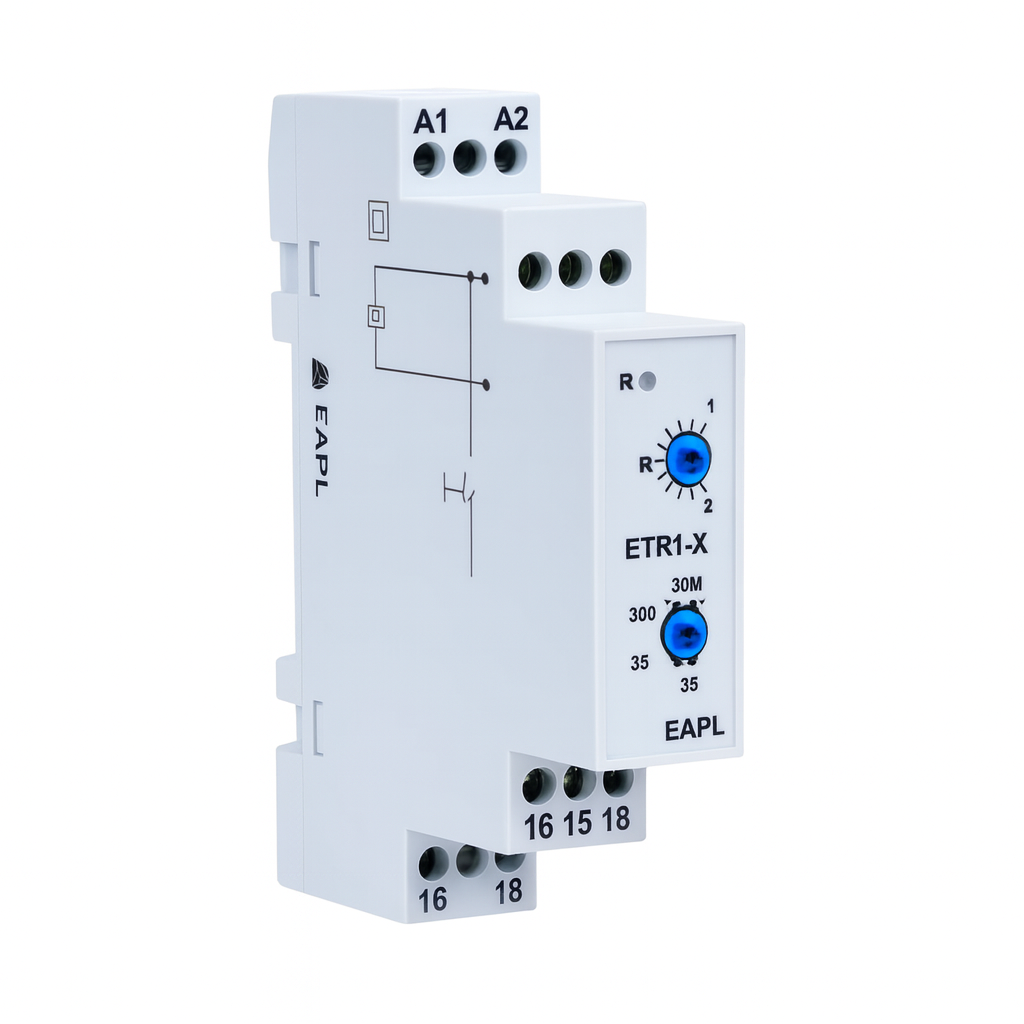

ETR1-X

The EAPL ETR1-X is a compact and versatile electronic timer relay designed for precision timing control in industrial automation systems. With a universal input voltage range, multiple timing functions, and robust output capabilities, it offers flexibility for a wide range of control panel applications. Its DIN-rail friendly design, easy programming, and LED status indication make it a reliable and user-friendly solution for engineers and panel builders seeking consistent performance in demanding environments.

Key Specifications

Function: Multi-function electronic timer relay with adjustable timing.

Operating Voltage: 24–240 V AC (50/60 Hz) / 24–220 V DC (±10%).

Timing Range: Wide adjustable range, from fractions of a second to several minutes depending on setting.

Output: 1 C/O (SPDT) relay contact.

Contact Rating: 5 A at 250 V AC / 28 V DC (resistive load).

Mounting: DIN-rail or screw mounting.

Indicators: LED indication for power and relay status.

Features: Universal voltage compatibility, compact design, easy adjustment via front dial, protective terminal covers.

Applications

AMF Panels – For sequencing and delay operations in generator control.

Motor Control Centers (MCCs) – Start/stop delay for motors and pumps.

Transformer & RTCC Panels – Timing control for tap changers and load transfer.

Process Control Systems – Delay, sequencing, and automation timing tasks.

General Industrial Control Panels – Any system requiring accurate timing and switching control.
