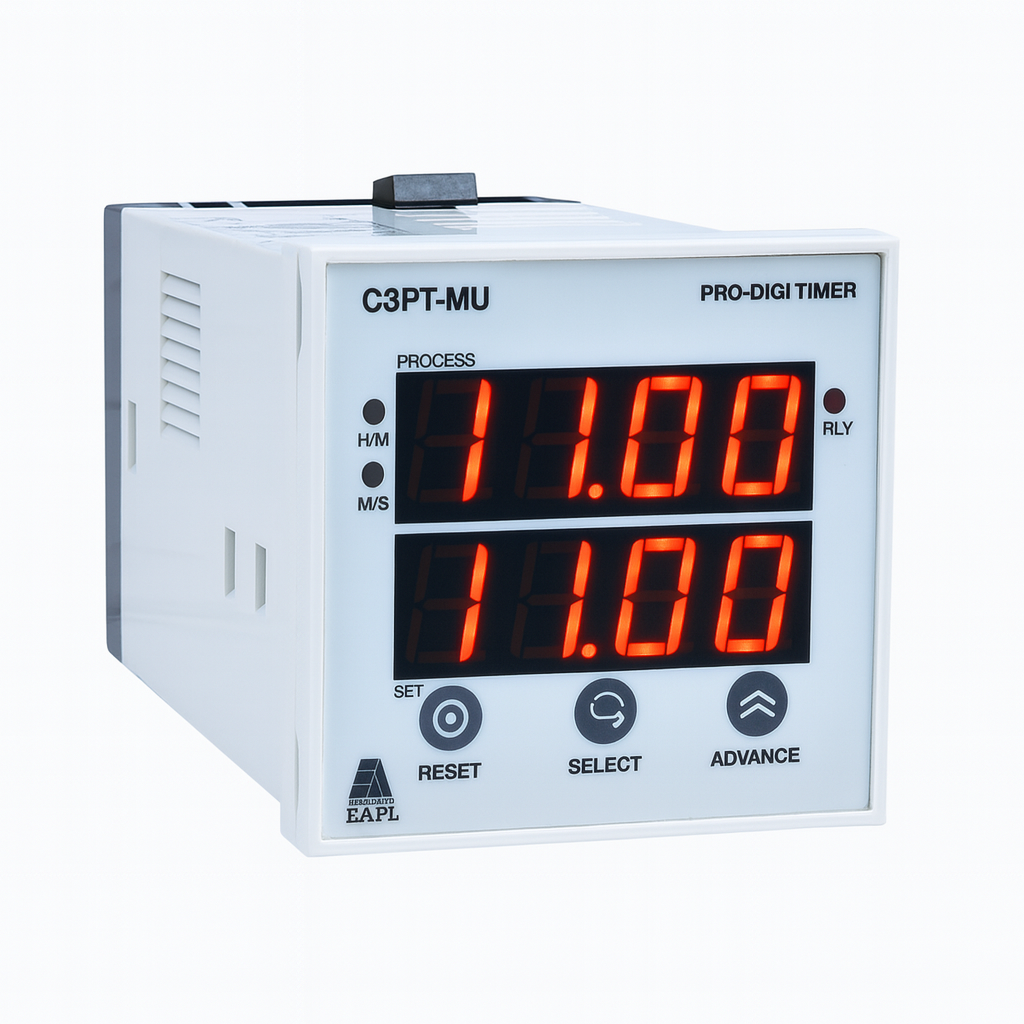

C3PT-MU

The C3PT-MU is a versatile, multifunction digital timer from EAPL designed for precise time-control applications in industrial panels and automation systems. It supports versatile timing modes, dual displays for process value and set value, and robust relay outputs — making it ideal for control of motors, pumps, conveyors, and other timed systems.

Key Features:

• Multifunction timing: Selectable modes including On Delay, Interval, and Cyclic.

• Start-signal options: Programmable start signal types — “No Start”, “Pulse”, or “Continuous” for flexible triggering.

• Wide timing range: From 0.1 seconds up to 99 hours 59 minutes — covers very short to very long delays.

• Dual-relay outputs: One relay can be configured as an instant contact, plus one or two delayed contacts (depending on configuration) for flexible output logic.

• Wide supply voltage: Supports 85 – 270 V AC/DC input, allowing use across a broad range of control voltages.

• Durable, panel-mounted design: Compact, DIN-/panel-friendly enclosure (72×72×128 mm typical) with clear process/set LED displays.

• Hold/Restart functionality: In the event of a power interruption, the timer can be configured to either hold elapsed time or restart anew, depending on requirements.

Applications:

• Timed automation in industrial control panels — for motors, pumps, conveyors, fans, compressors — wherever scheduled delays or cycles are needed.

• Multi-mode control requirements where the same device can be programmed for On Delay, Interval, or Cyclic timing — reducing the need for separate timers.

• Retrofits or new installations in distribution boards or motor control centres (MCCs), especially where compact timing modules with flexible logic are desired.

• Systems where start signal flexibility (pulse vs continuous) and dual-relay outputs are advantageous for control logic, alarms or interlocks.
