B1DCA-T

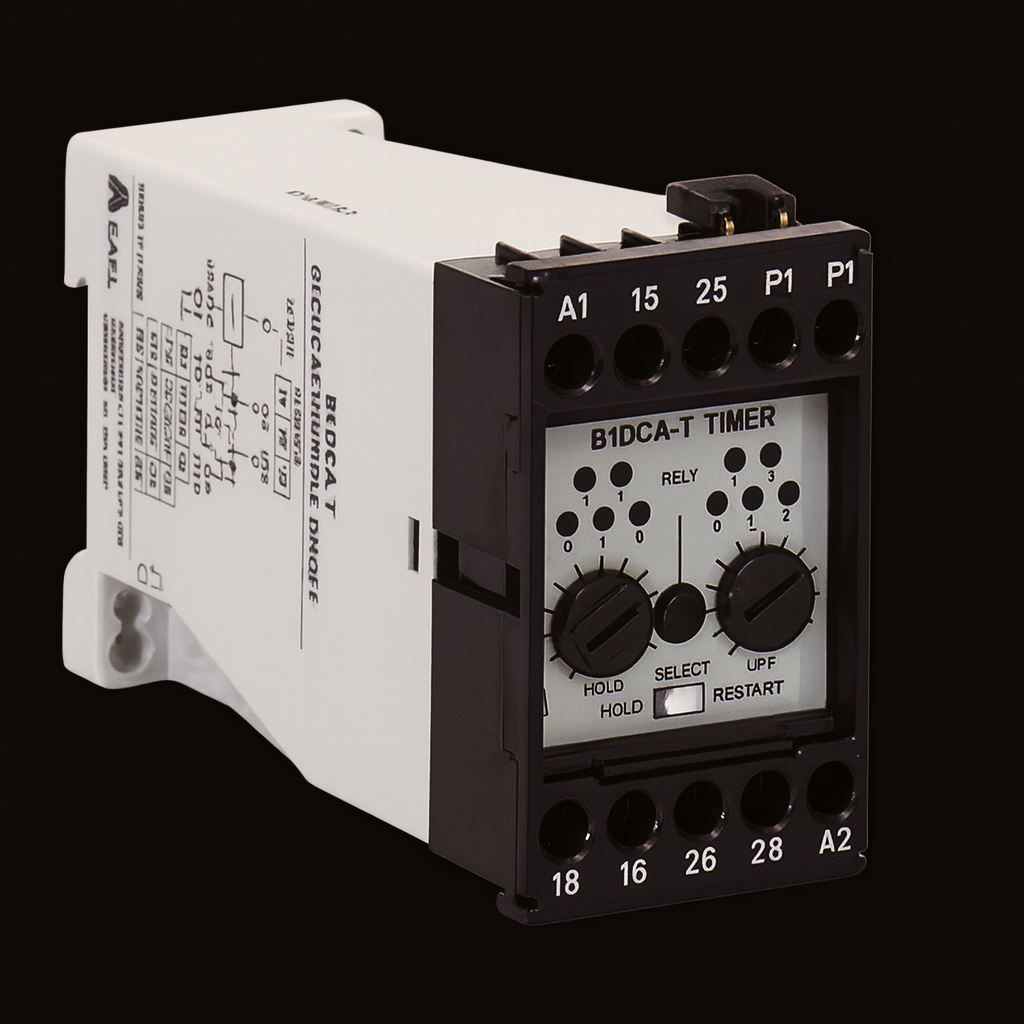

B1DCA-T – Product Description

• The B1DCA-T is a cyclic adjustable ON/OFF timer from EAPL’s B-Series.

• Provides independent adjustment of ON and OFF times with multiple selectable ranges.

• Equipped with Hold/Restart functions for flexible operation.

• Compact DIN-rail or panel-mountable design with user-friendly rotary knobs and selector switches.

Key Specifications

• Function: Cyclic ON/OFF timer with adjustable ON and OFF intervals.

• Supply Voltage: Wide operating range (AC and DC, typically 24 V to 240 V AC and 24 V to 220 V DC for X-version models).

• Time Range: 0.6 seconds to 60 minutes with selectable ranges via switches.

• Output: 2 change-over (C/O) relay contacts, rated 5 A at 250 VAC / 28 VDC resistive load.

• Power Consumption: Approximately 5 VA (AC) or 1 W (DC).

• Range Selection: Multiple ranges (e.g., seconds to minutes) selectable using the front panel.

• Accuracy:

  • Setting accuracy: ±10% of full scale ±100 ms.

  • Repeat accuracy: ±1% ±100 ms.

  • Recovery time: Minimum 100 ms.

• Environmental Ratings:

  • Operating temperature: –10 °C to +55 °C.

  • Storage temperature: –25 °C to +80 °C.

  • Humidity: Up to 85–95% RH at 40 °C.

• Service Life:

  • Mechanical: ≥1 million operations (no load).

  • Electrical: ≥100,000 operations at rated load.

• Insulation: >100 MΩ at 500 V DC.

• Dielectric Strength: Withstands up to 2.5 kV AC between key parts, 1.5 kV AC between contacts/control, 1.0 kV AC across non-continuous relay contacts.

• Terminals: Screw-type with self-lifting clamps.

• Dimensions: Approximately 45 mm (W) × 75 mm (H) × 116 mm (D).

Applications

• Lubrication systems requiring timed cyclic ON/OFF operation.

• Diesel generator (DG) sets for periodic control functions.

• Pumps and compressors in industrial processes.

• Packaging, textile, and process machinery.

• Lighting and heating systems requiring cyclic control.

• Alarm and signaling systems with repetitive timing needs.

• Automation and MCC panels for sequential cyclic operations.

Summary

• The B1DCA-T is a versatile cyclic timer with adjustable ON and OFF times.

• Provides high accuracy, repeatability, and flexible control features such as Hold and Restart.

• Compact, durable, and designed for industrial control environments.

• Ideal for applications in automation panels, DG sets, pumps, and process industries requiring precise cyclic control.
