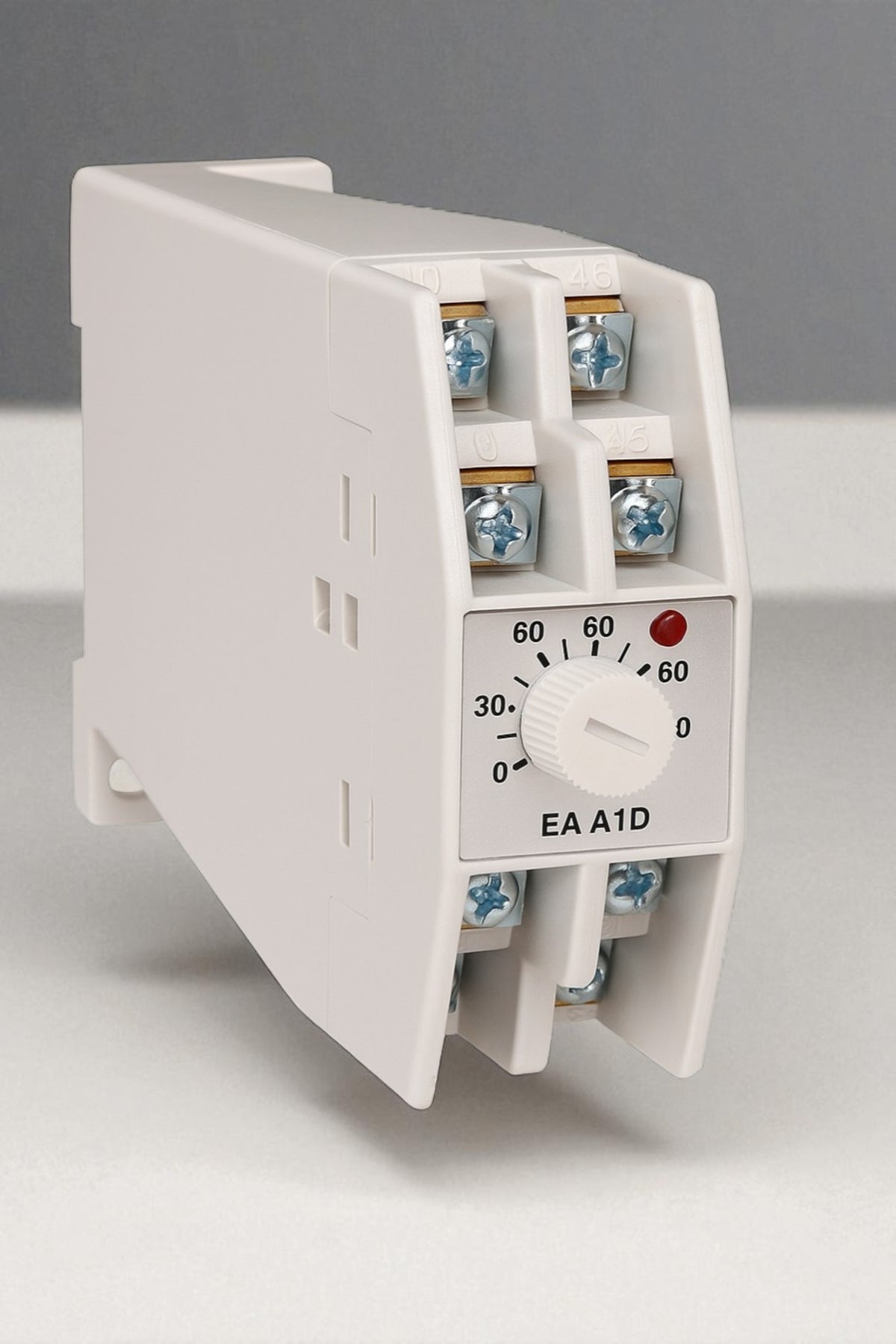

Specifications
Function: On-Delay Timer – activates the output relay after the preset delay period.
Operating Voltage: Wide AC/DC range for universal compatibility.
Time Range: Adjustable from 0.3 seconds to 30 minutes.
Output: Dual changeover (C/O) relay contacts for flexible control logic.
Contact Rating: 5 A at 250 V AC or 28 V DC (resistive load).
Mounting: DIN-rail or screw mounting in a compact 22.5 mm × 75 mm × 102 mm enclosure.
LED Indicators: Separate LEDs for power, relay status, and timing operation.
Additional Features: HOLD/RESTART function, Program Enable/Disable for tamper protection, Auto/Manual mode selection, and terminal safety covers for operator protection.
Applications
The EAPL A1DA is suitable for a wide range of industrial control and automation environments, including:
AMF Panels – Auto Mains Failure systems for generators.
HT/LT Panels – High and low tension switchgear control.
Motor Control Centers (MCCs) – Motor start/stop sequencing and delay control.
Control & Relay Panels – For process automation and safety interlocks.
Transformer & RTCC Panels – Load changeover and timing operations in transformer systems.
